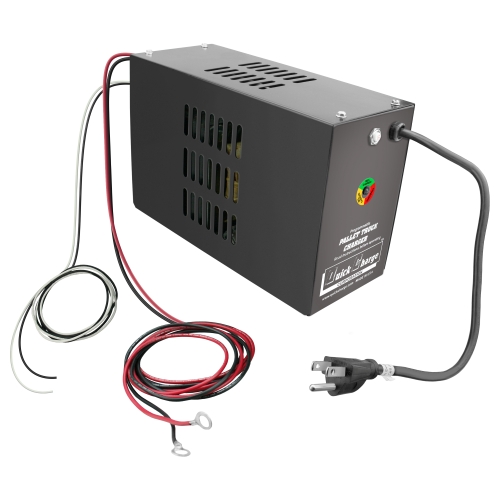

This drop-in ready PJ2415 Quick Charge On-Board pallet jack charger with O-Ring connectors is designed for a wide variety of Yale & Hyster lifts!

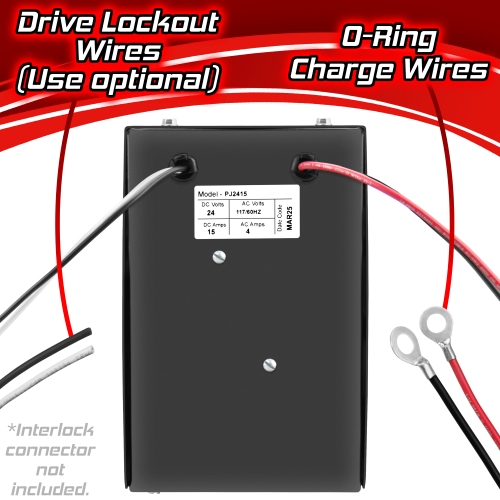

Comes with a Drive Lockout option* (Black & White wires) to prevent damage to the charger from operating the machinery.
*Interlock Connector not included, reuse your existing connector.
Featuring tough metal-cast casing and reverse polarity protection, this fully automatic charger is crafted for both ease of use and a longer lifetime. Charging mode switches automatically to float maintenance to prevent over-charging and excessive self-discharge.

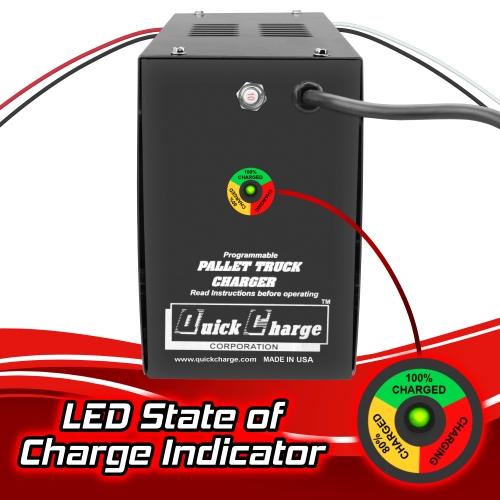

LED displays State Of Charge (SOC) to keep the user informed.
Compatible with Hyster Pallet Jacks= W40Z, W45Z, HY4075269, HY1607815, HY2054228, HY2102631, HY8512512, HY2048079, HY2073416, HY4603626, S/N B218N26949L, and Up.
Compatible with Yale Pallet Jacks= MPB40-E*, 580055473, 582003887, 580034920, 524245865, 580087314, 580029671.
*When used with 9" MPB40-E can replace charger model: 1-24020-04-hf. Cannot replace this charger on the 7" truck battery; there is not enough space.
Can replace Yale charger 1-24012-04.
See the full electrical specifications and features below!

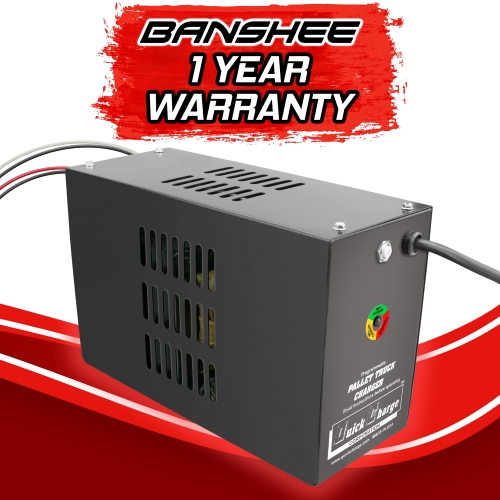

1 YEAR WARRANTY
30 DAY MONEY BACK GUARANTEE
FREE SHIPPING TO US INNER 48
30 DAY MONEY BACK GUARANTEE
PJ2415 Charger Specifications =
| DC Volts | 24 V |
| DC Amps | 15 A |
| AC Volts | 117 / 60Hz |
| AC Amps | 4 A |

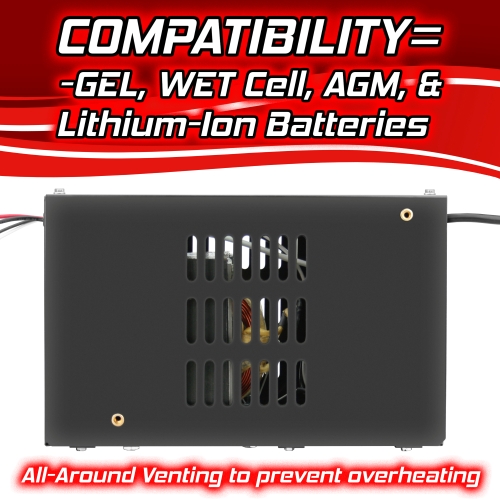

| Compatible Chemistry | GEL, Wet Cell, AGM, Lithium-Ion |
| Connector Type | O-Ring Lugs |
| Drive-Lockout Option? | YES |

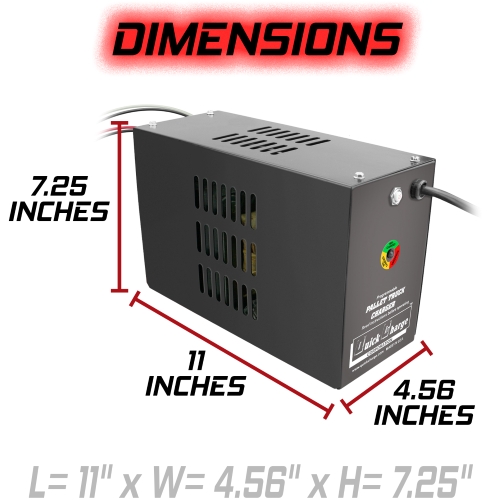

| Dimensions | L= 11" x W= 4.56" x H= 7.25" |
| Weight | 19 Lbs (8.62 kg) |
FEATURES =
Drop-In On-Board Charger
Fully Automatic with Float Maintenance
Wide Range of Compatible Chemistries
LED State Of Charge (SOC) Indicator
Drive Lockout
Reverse Polarity Protection
Metal-Cast Casing
All-Around Venting
